商品の詳細:
お支払配送条件:
|
| 色: | 、青い、ベージュ緑、すみれ色 | 挿入損失: | SM=<0.2dB |
|---|---|---|---|
| 反射の減少: | PC>= 45 dB、UPC>= 50 dB、APC>= 65 dB | 互換性: | ≤0.20 dB |
| 反復性: | ≤0.10 dB | 保管温度: | -40~85℃ |
| 単位の販売: | 単一項目 | 単一のパッケージのsize : | 3X2X2 cm |
| 単一の総重量: | 0.100 kg | パッケージのタイプ: | polybag、まめ箱、カートン箱 |
Fiber optic adapter is also called fiber optic coupler. It is used to provide a cable to cable fiber connection. People sometimes also name them to be mating sleeves and hybrid adaptors. Mating sleeves means this fiber optic adapter is used to connect the same type fiber optic connectors, while hybrid adaptors are the fiber optic cable adaptor types used to connect different kinds of fiber optic connectors. We provide a complete line of adapters for fiber optic connection, like ST, SC, FC, LC, MTRJ, MPO, MU, SMA, E2000, DIN style fiber optic adapters for both multimode and single-mode fiber applications.
CATV
Telecommunication networks
Local Area Networks (LANs)
Metro networks
Data processing networks
Industrial, military and medical
Compact design
Telcordia, TIA/IEA, IEC and JIS compliance
High precision alignment
Low insertion and return loss and back reflection
Choice of metal or plastic housing, mount style & flange options
Repeatability: ≥1000 times
Insert loss: SM ≤0.2 dB, MM ≤ 0.3 dB
Compatibility: ≤ 0.2 dB

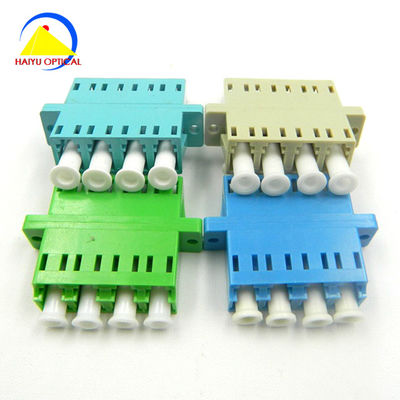

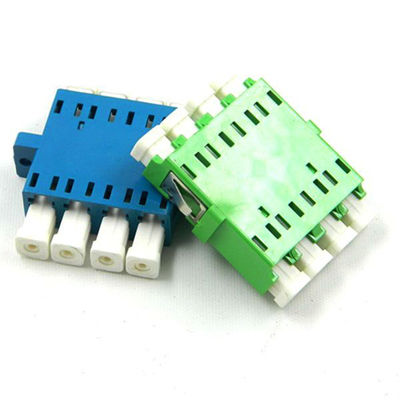

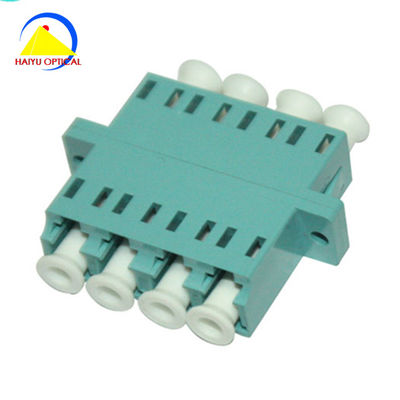

The LC Optical fiber adapters has simplex, duplex, quad types. According to shape, it has flange, flangeless, high low, high step, etc. According to color, it has blue, green, beige, black, aqua, purple etc.
The normal housing material is plastic, also has metal housing.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine.
25pcs/box, also can pack in PE bag if you required.
Use hign strong carton to protect the goods.
Haiyu optical has award ISO CE and Rosh certificate for our products.
OEM & ODM is accepted, any questions welcome to contact us.
