商品の詳細:
お支払配送条件:
|
タイプ: | 繊維のアダプター及びコネクター | 繊維のいいえ: | 1. |
---|---|---|---|
使用: | FTTX | アダプターのタイプ: | FC、SC、LC、ST、E2000、MTRJ |
終わり: | PC、UPC、APC | モデル: | SM、MM、SX、DX |
外装の直径(mm): | 0.9/2.0/3.0 | 挿入損失: | SM=<0.2dB |
反射の減少: | PC>= 45 dB、UPC>= 50 dB、APC>= 65 dB | 望遠鏡材料: | 陶磁器 |
保管温度: | -40~85℃ | 港: | シンセン |

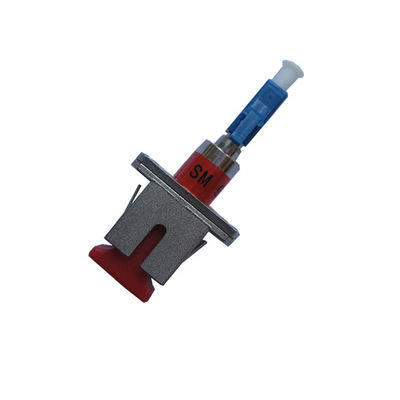

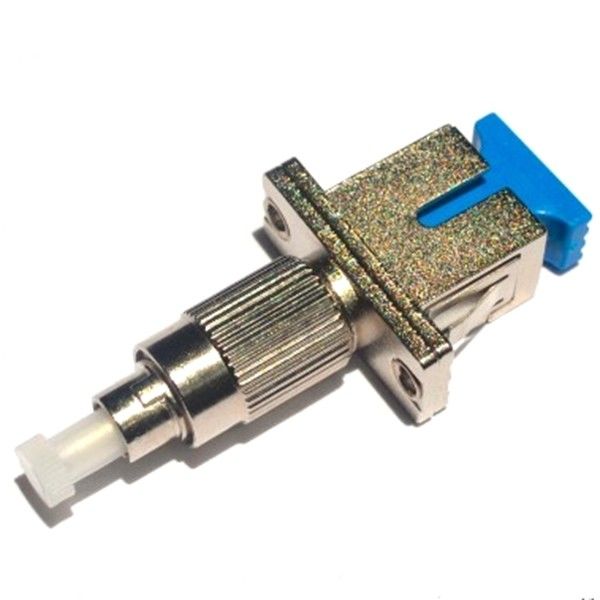

Fiber Optic Hybtid Adapter Male to Female FC SC Fiber_optic_adapters
sc/apc fiber optic adapter/ sma sc fiber optic adapter/ sma st fiber optic adapter
Product characteristic
compatibility, repeatability
high precision size has good compatibility
resistance to friction ceramic casing
environmental stability good
card lock plug
provide separate ST type, SC type, FC type, LC type and so on many kinds of adapter
sc/apc fiber optic adapter/ sma sc fiber optic adapter/ sma st fiber optic adapter
Application
any optical fiber connection
fiber to the home, optical fiber sensors, testing instruments, such as optical fiber point
technical parameters
material:ceramic
repeatability: ≥1000 times
insert loss: SM ≤0.2 dB, MM ≤ 0.3 dB
compatibility: ≤ 0.2 dB
sc/apc fiber optic adapter/ sma sc fiber optic adapter/ sma st fiber optic adapter
Optical Parameter | W/Japanese Ceramic Sleeve | W/Chinese Ceramic Sleeve | W/P.B Sleeve |
Insertion Loss | <0.1 dB | <0.2dB | <0.3dB |
Durability | <0.10 dB typical change,1000 times | <0.2dB typical change,1000 times | <0.30 dB typical change,500 times |
Operating Temp | -20~75°C | ||
Storage Temp. | -40~85°C |
sc/apc fiber optic adapter/ sma sc fiber optic adapter/ sma st fiber optic adapter

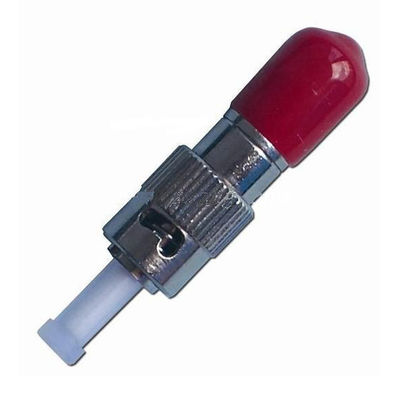

Other types adapter:
Haiyu Optics, founded in 2007, is focus on design and manufactured fiber optic communication products. It has developed a range of
products including fiber optics like patch cord, adapters attenuator and splitters, optical transceiver modules, media converter, video
transmitter &receiver and FTTH equipments. Widely used in telecom communication, mobile communication, network solution and television
Milestones
2007 Haiyu optics communications technology co., ltd was established in Hongkong.
2009 Shenzhen Haiyu optics communication equipment co., ltd was established in Shenzhen China
Plant area and No. of employees
Amount 2,000 Square meters, around 300 employees in total.
OEM & ODM is accepted, any questions welcome to contact us.
