商品の詳細:
お支払配送条件:
|
| 挿入損失: | UPC<0.2dB、APC<0.3dB | 適当なケーブル: | ドロップ・ケーブル3.1 x 2.0 mmの |
|---|---|---|---|
| ポーランド語: | APC、UPC | 名前: | プラスチック速いコネクター |
| 素材: | プラスチックか鋼鉄 | 適用: | FTTH、LAN、PON&Optical CATV |
| モード: | SM、MM | 証明書: | ISO9000、ROSH |
| 包装: | ポリ袋 | タイプ: | 繊維光学の部品 |
| 港: | シンセン |
Fiber Optic Fast Connector designed for FTTH

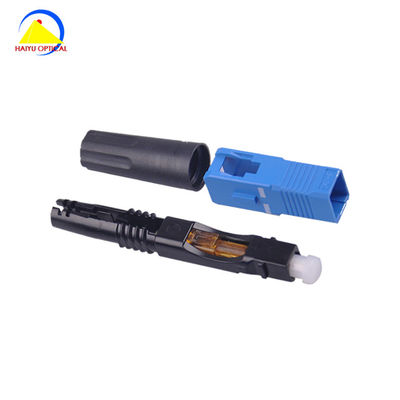

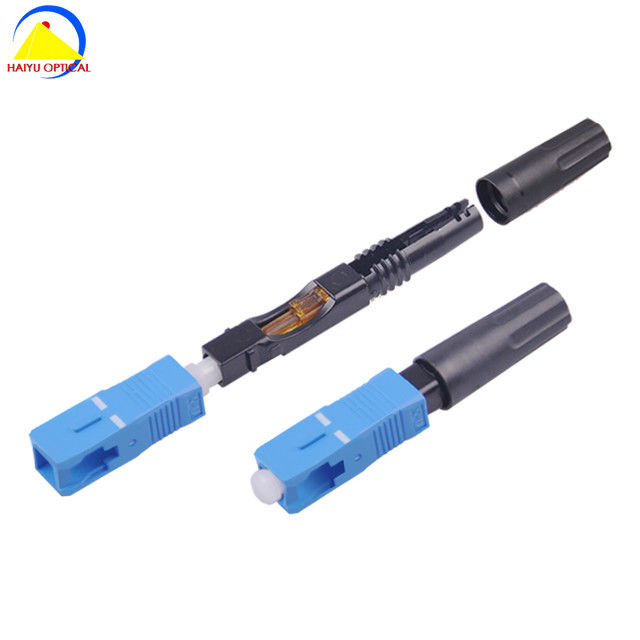

Plastic fast connector:
1. Easy to operate can save time
2. 100% qualified, reduce the maintenance cost.
3. Easy to assembling with mechanical splice and no polishing
4. High stablity ,low insertion loss ,high return loss.
Plastic fast connector parameters:
ITEM | Technical Parameters |
Application | FTTH indoor&outdoor |
Optical fiber diameter | 125μm ( 657A & 657B ) |
Tight buffer diameter | 250μm |
Fiber mode | Single mode |
Operation time | About 100s(no fiber cut) |
Insertion loss | ≤ 0.2dB(1310nm & 1550nm) |
Return loss | ≤ -50dB |
Fastening strength of naked fiber | >5 N |
Fastening strength of naked fiber holder | >10 N |
Tensile strength | >50 N |
On-line tensile strength (20 N) | Δ IL ≤ 0.5dB Δ RL ≤ 5dB |
Mechanical durability (500 times) | Δ IL ≤ 0.5dB Δ RL ≤ 5dB |
Drop-off test (drop-off height 4m, once per direction, totally 3 times) | Δ IL ≤ 0.5dB Δ RL ≤ 5dB |
Using temperature | -40~+75°C |
Plastic fast connector application:
· Premise environments
· Connections at the desk for LAN environments
· Patch panels
· Direct equipment termination
· Fiber to the Subscriber (FTTx) applications
· Repair/replacement requirements
· Equipment test leads
