商品の詳細:
お支払配送条件:
|
| 適用: | FTTA | 特徴: | 防水 |
|---|---|---|---|
| 港: | シンセン | MOQ: | 100pcs |
| テスト: | テストされる優秀な磨かれたおよび100% | 長さ: | 0.9/2.0/3.0m |
| パッキング: | 輸出標準的なパッキング | 繊維のタイプ: | G652D |
Optical Cable Assembly DLC/PC waterproof cable assembly
Application
3G 4G base station used
Aerospace & Defence
Equipment diagnosis
FO sensor
FTTA ,FTTP, FTTX,WIMAX
BBU, RRU, RRH, LTE
Features:
The item used for outdoor RRU transmitting optical signal and remote fiber feeder etc;
saftly screwing connecting ;
Protection Level reach IP67 ;
Low insertion/return loss,steady optical transmitting.
Products Data
Item | Data |
Insertion Loss | ≤0.3dB |
Mechanical life | 500cycles |
Working temperature | -40°C~+70°C |
Storage temperature | -40°C~+70°C |
Operating temperature | -10°C~+50°C |
Protection Level | IP67 |
Tensile Data | Tensile between junction and fiber cable≥180N |
Out shell inflaming retarding | UL94 V-0 |
Out shell Uvioresistant | UL 746C |
Authentication | Meet with RoHS |
7mm fiber cable
Item | Data |
fiber | Singlemode G.657A2 |
Fiber diameter | 7mm |
Material & color for jacket | LSZH black |
Tension member | Aramid fiber |
Max. attenuation | ≤ 0.4 dB/km at 1310nm ≤ 0.3dB/km at 1550nm |
Tensile resistance(short term) | 500N(no breakage) |
Crush resistance(short term/long term) | 1000N/100mm |
inflaming retarding | IEC 60332-3 |
Temperature | -40~+70°C |
Uvioresistant | PASS |
Authentication | Meet wigh RoHS &UL |

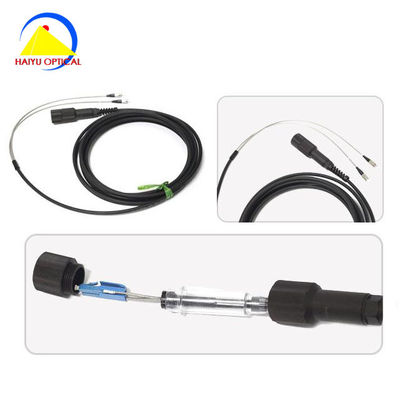

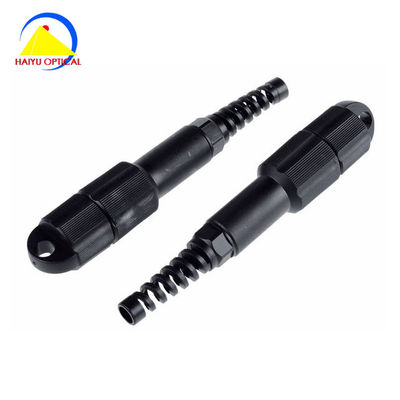

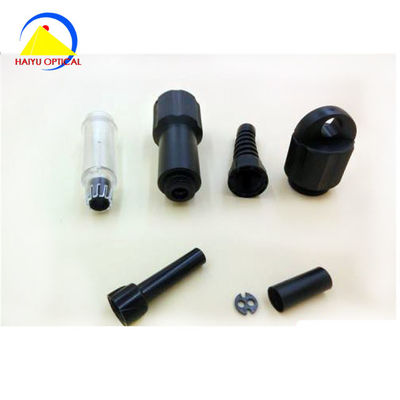

Product show
